ULP (User Language Program) scripting is a powerful tool within Eagle CAD allowing users to automate repetitive tasks and customize the software's behavior. These scripts are written in a simple scripting language that can perform various actions, such as creating new symbols, modifying existing designs, and generating reports. By learning ULP scripting, users can significantly increase their efficiency and productivity when working with Eagle CAD.
Eagle does not allow you to change the font on symbols for parts by default. But you can manage this using the "smash" tool, which allows users to move the Name and Value items around on their PCB.
Here’s a quick ULP script that copies the pin names on the symbol and rewrites the names as plain text. This enables you to move the names and change the text properties to make them easier to read or customize based on your needs.

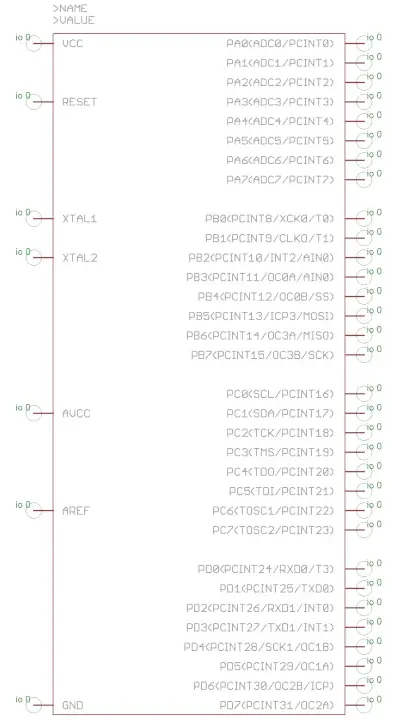

Symbols before and after running script.
You can download the ULP from our Github EDALibrary repository. Remember that this ULP script should be run in the Schematic Editor, not the Board Editor.
By editing lines 24 to 32 in the script you can change the font and font size used.
sprintf(h, "Change Layer 97;\n");
sprintf(h, "Change Font Vector;\n");
sprintf(h, "Change Ratio 8;\n");
sprintf(h, "Change Align center-left;\n");
sprintf(h, "Change Size 0.04;\n");
In the future we will make these options available via drop-down or text inputs in a popup dialog box. If you change the name of the pin after smashing, the text does not update so the script will have to be run again.
Read about the USB Micro Connector update within Eagle now.
