Red Hot PCB: Retroactive’s “64 Drive” Development Tool

This week's Red Hot PCB comes from Retroactive and is a development tool for the Nintendo 64.

Published on May 15, 2017
Written by The MacroFab Team
Related Topics
Why the Future of Electronics is Moving Away from Silicon Microchips

With technological advances and changing market trends, there has been a growing movement towards silicon carbide (SiC) and system-on-a-chip (SoC) designs.

Why Should You Use Rigid-Flex PCB Assembly?

Rigid-flex PCBs use both rigid and flexible substrates, enabling the electronic engineer to connect multiple layers of flexible and printed subcircuits.

PCBA Signal Integrity Problems: Ten Factors to Consider

It is difficult to protect each key signal from all noise intrusions, but this must be done to design an effective PCB assembly.

Other Resources

MacroFab Engineering Podcast
Blog
eBooks & Guides
Webinars
Videos
Case Studies
MacroFab Platform Help
64drive circuitboard 2

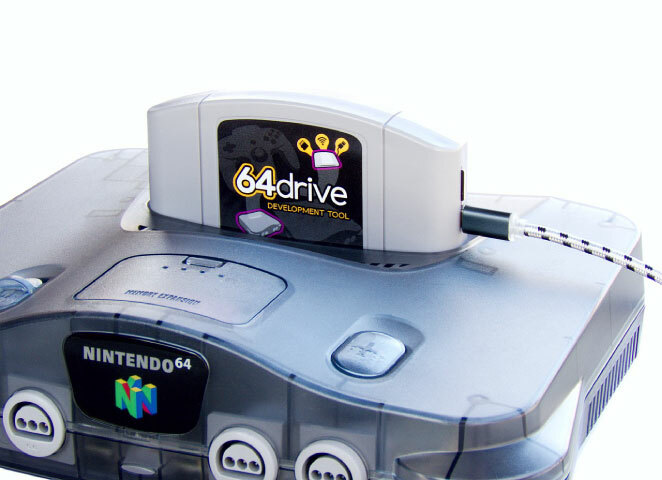

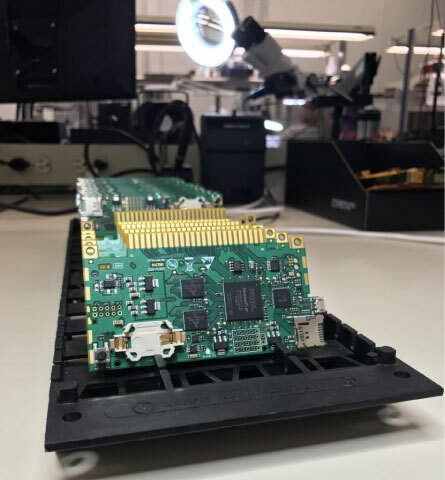

This emerald beauty was manufactured and assembled in our shop for Retroactive and is for their “64drive” which is a new development tool for the venerable game console (Nintendo 64, from 1996).

64drive circuitboard 1

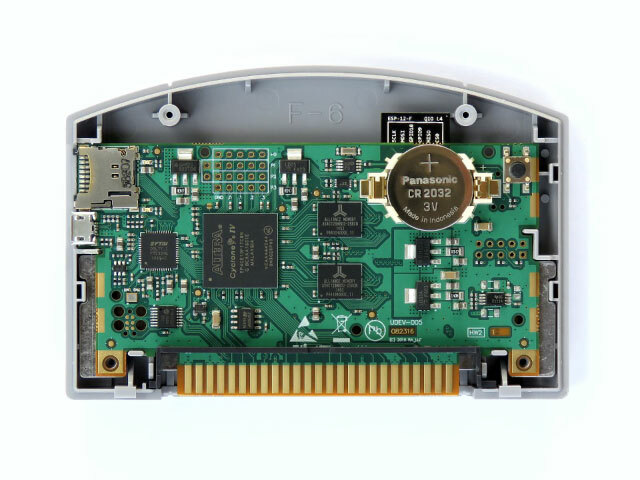

The design allows people to quickly test out custom software for theN64 – running the show is an Altera Cyclone IV FPGA that interfaces to an FTDI FT232H USB chip, 256MB of DDR2 memory, and loads files from SD-compatible memory cards. A Texas Instruments power mux allows the circuitry to stay powered from either USB or when the game console is turned on.

64drive circuitboard 3

There’s also a battery backed real time clock, a PIC micro-controller for housekeeping, and a WiFi module. So far it’s been popular with people doing fan translations of Japanese-only games that were never released in English. Users can load stuff from a memory card, or they can transfer directly from the computer where they are working, over USB. People have also been using it when archiving or unearthing rare and unseen game prototypes in case the original fails.

Shout out to Marshall from Retroactive for his contributions to this week’s Red Hot PCB.
