Understanding Conformal Coating Vs. PCB Potting/ Encapsulation

Here is a quick overview of encapsulation vs. conformal coating, as well as their best uses.

By Muirae Kenney  |  September 12, 2022
checkpoint
Checkpoint

Conformal coating protects from damage caused by fungus, moisture, salt spray, or corrosion.

Checkpoint conformal coating

The manufacturing of PCBAs increasingly requires conformal coating and potting/encapsulation. The world’s technological advancements enable PCB assemblies to find their way into an expanding number of products in a wide range of industries. Occasionally, these products need extra protection to shield them from external contamination while preserving their original design and functionality.

Designers can achieve this result with conformal coatings or potting and encapsulation resins. Aside from providing chemical and thermal resistance to boards, both organic polymer substances also deliver electrical insulation. In spite of this, they differ significantly and shouldn’t be confused with each other. Here is a quick overview of conformal coating vs. potting vs. encapsulation, as well as their best uses.

What is Conformal Coating?

A conformal coating serves as a robust and protective shield for printed circuit board assemblies (PCBAs) and enhances their durability and longevity in challenging environments. As a polymerizing film, conformal coating adapts to the contours of the components it covers, thus having a 'conformal' nature.

Composed of various materials including acrylics, silicones, polyurethanes, and epoxy, this thin, lightweight layer delivers a non-conductive dielectric defense against moisture, dust, salt spray, and other corrosive elements. It may be applied by brushing or spraying.

By adding this additional protection, conformal coatings significantly improve the reliability and operational lifespan of electronic devices, reinforcing their functionality in the face of harsh or challenging conditions.

Conformal Coating vs. Potting vs. Encapsulation – What’s the Difference?

Pcba conformal coating vs encapsulation potting

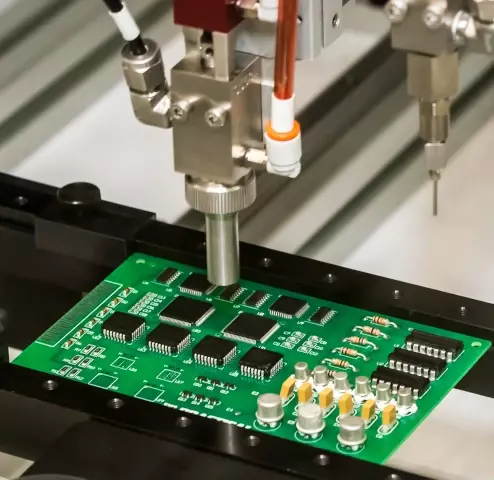

Conformal coating and potting or encapsulation of PCBAs provide different levels of protection.

Encapsulation uses a thick resin to contain electronic components. Resin provides protection from physical shock and chemical exposure. This step involves mixing the resin with a hardener before applying it to the board. When the crosslinked polymer dries, it obscures the component underneath.

PCB potting is sometimes confused with encapsulation, but the two processes are actually different. During potting, a case or shell is created, and resin is poured over it to completely encase the component. The resin-filled pot becomes part of the final product. Often, potting protects sensitive components against moisture and water damage. Furthermore, it can act as a visual and physical barrier that prevents IP theft and tampering.

To avoid moisture contamination, PCB potting should be adequately degassed before filling or pouring. Air bubbles trapped within the coating can cause a moisture problem if the encapsulant is improperly stored or applied.

The Best Way to Protect Your PCBA

If you have a variety of options at your disposal, how do you decide which is the best one for your application? To begin, you should consider the environmental factors that will affect your assembly, such as:

Protect pcba
  • Chemical exposure: Coatings and resin both provide excellent protection from chemical exposure.
  • Mechanical stress: Resin provides a thick layer of protection against physical damage in environments where components may be abraded or scratched.

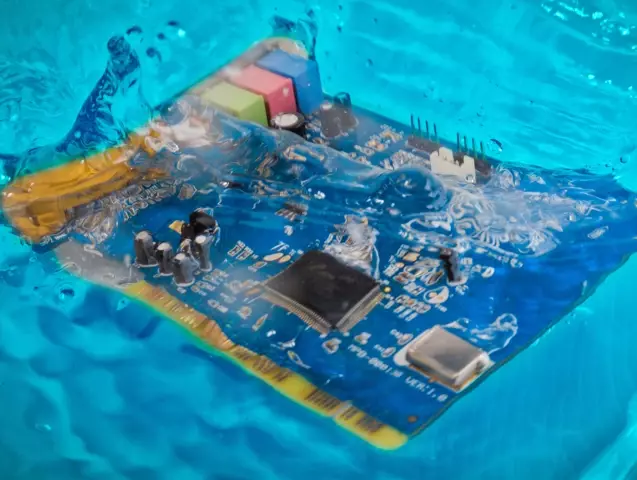

  • Moisture from water, humidity, etc: Conformal coating is a cost-effective method of preventing water infiltration. Water resistance varies from coating to coating.
  • Physical shock: Resin spreads the impact over the entire material, reducing or eliminating damage to underlying parts.
Temperature extremes
  • Temperature extremes: Extreme temperatures require additional consideration, especially when selecting resins. A special type of epoxy compound designed for aggressive environments exists.

Although encapsulation and potting provide protection from extreme environments, coatings offer more flexibility. With their thin application methods, conformal coatings can last for a long time and do not add extra weight or stress, as resin coatings do. Conformal coating often provides a secondary level of protection below the surface of an external housing. This partnership results in more effective risk management while maintaining board workability.

How to Apply a Conformal Coating

It is possible to apply conformal coatings in several different ways. This is determined by production yield and includes

  • Dip Coating: In dip coating, the PCB or components get immersed in the coating solution. It allows for a full application, but issues may arise during drying.
  • Brush Coating: Wet coating gets applied piece by piece with a brush. When misapplied, brush coating can lead to unsatisfactory performance results.
  • Spray Coating: Spray coatings can be applied manually or by machines. In addition to its extreme accuracy, automatic spraying facilitates high-volume production due to its highly repetitive nature.

Final Considerations

Ozone depleting chemicals

Consider your vendor’s capabilities, your product needs, and any regulatory requirements that may apply to your project before deciding whether to coat or encapsulate. The Montreal Protocol restricts some chemicals once used in conformal coating formulations as ozone-depleting chemicals, so make sure your CM understands these limitations (especially if they are located in a country with fewer environmental restrictions.)

Among the conformal coating types and methods offered by MacroFab are acrylic, silicone, and polyurethane. As per industry standards, we conduct quality control under UV light and add a UV tracer to our conformal coatings.
